How to bypass CDI box on Chinese ATV? Among ATV aficionados, the issue of removing a CDI (Capacitor Discharge Ignition) box from a Chinese ATV has drawn some interest. Controlling the timing of the system, which is essential for the performance and dependability of the engine, is under the purview of the CDI box.

Image credit: etags.com

Some ATV owners may opt to omit the CDI box, though, to boost power or accomplish other performance-related objectives.

Although when you bypass a CDI box it seems to be a simple fix, it might be risky and could harm the engine.

Before trying to circumvent the CDI box, it’s essential to understand the effects of doing so.

Image credit: roverbiker.com

This discussion will look at the potential risks you may face when you bypass a CDI box on ATV, the reasons why some ATV owners might think about doing so, and alternative solutions that can help with performance-related problems without jeopardizing the safety and dependability of your Chinese ATV.

I wish this guide will be interesting for you to read.

Things to consider

Measure the primary coil resistance and a secondary coil resistance of the ignition coil on a Chinese ATV before attempting to bypass a CDI box on ATV.

This will help to check that the coil is operating properly and is capable of handling the extra voltage and power that could be generated when you bypass a CDI box on ATV.

Image credit: onerwheel.com

On a Chinese ATV, follow these methods of measuring primary coil resistance and primary winding resistance that feature three electrical contacts and secondary winding resistance specifications.

Before measuring the electrical resistance of the pickup coil, detach the coil from the wiring harness to avoid any potential interference with the test’s electrical components or any damage.

The multimeter should be set to the ohms setting to measure the electrical resistance.

Connect the multimeter’s positive and negative ends to the ignition coil’s positive and negative electrical terminals of the outer electrical contacts, respectively, to measure the primary coil resistance specifications of CDI boxes.

The manufacturer’s recommendations on external electrical contacts of CDI boxes, which may be found in the ATV’s service manual, should be met by the primary winding resistance.

Image credit: onerwheel.com

Connect the multimeter’s other end to the spark plug wire and the positive terminal of the coil to measure the secondary coil resistance. Additionally, the secondary coil resistance must meet the manufacturer’s requirements.

Compare the readings to the recommendations from the manufacturer, to make sure the coil is operating properly and is capable of handling the higher voltage and power that may result when you bypass a CDI box on ATV.

It’s important to note that disabling the CDI unit can be risky, so you shouldn’t attempt it unless you have a firm grasp of the electrical components of the ATV.

Image credit: drivemotors

Before attempting to bypass a CDI box on ATV, it is essential to seek advice from a qualified mechanic or an authorized dealer.

Is it recommended to bypass CDI box on Chinese ATVs?

It is not recommended to bypass a CDI box on ATV because it can be risky and could harm the engine. The CDI unit is a critical part of the ATV’s ignition coils since it regulates the timing of the ignition spark, which is important for the efficiency and dependability of the engine.

Image credit: onerwheel.com

When bypass a CDI box on ATV, it can cause the engine to lose power, use less gasoline, and be more difficult to start. Additionally, it may harm the engine and other electrical contacts and parts, necessitating expensive repairs.

It is advised to handle any faults with the CDI unit by having it examined, fixed, or replaced by a qualified mechanic rather than bypassing it.

This will guarantee that the system of the ATV is operating properly and guard against additional harm to the engine or other electrical parts.

FAQ

How can I run my bike without CDI?

The majority of contemporary motorcycles include CDI boxes (Capacitor Discharge Ignition) technology that regulates the timing of the ignition spark and aids in smooth engine operation.

Install a conventional points-based ignition system

The spark timing on older motorcycles was managed by points-based ignition systems. You must take off the CDI box if your bike originally came with one and install a points-based ignition system instead.

Consider using a magneto ignition system because it can operate without a battery or CDI unit and produces electricity. You can buy and install a magneto ignition system on your motorcycle.

Utilize a battery-powered coil ignition system

Another option is to utilize a CDI-free battery-powered coil ignition system.
It’s vital to remember that operating your motorcycle without a CDI module can be risky and could harm your engine. Additionally, you can notice a reduction in power, decreased fuel efficiency, and trouble starting your bike. It is advised that you get advice from a qualified mechanic before attempting to use your bike without a CDI module.

Image credit: roverbiker.com

Can a bad CDI cause no start?

Yes, a defective CDI module (Capacitor Discharge Ignition) might result in a motorcycle that won’t start. The CDI is responsible for managing the system and synchronizing the spark that ignites the engine’s fuel. The engine may not start or may run poorly if the CDI is malfunctioning.

The following are some typical signs of a poor CDI module that can result in a no-start condition:

No ignition or start
If the CDI module is malfunctioning, it may not provide the signal to the ignition coil necessary to make a spark.

Weak spark

A CDI module that isn’t working properly can also produce a weak spark, which might not be enough to start the engine’s fuel mixture.
An inconsistent spark can occasionally result from a defective CDI box, which can make the engine run poorly or not at all.

Engine misfiring

A CDI module issue might lead to the engine misfiring or running erratically, which can make starting challenging or impossible.

In conclusion, a malfunctioning CDI module can result in a no-start problem since the system won’t work properly. To prevent further harm to your motorbike, it is essential to get your CDI module checked out and replaced by a qualified mechanic if you have any reason to believe it may be defective.

Image credit: onerwheel.com

How do you test a CDI box on a Chinese ATV?

A multimeter and a few simple tools can be used to test an ATV CDI module (Capacitor Discharge Ignition) box on a Chinese ATV. The steps are as follows:

Connect the CDI box to the wiring harness

You must first detach the ATV CDI module from the wire harness before you can test it. By doing this, any electrical interference or harm to the wiring harness during testing will be avoided.

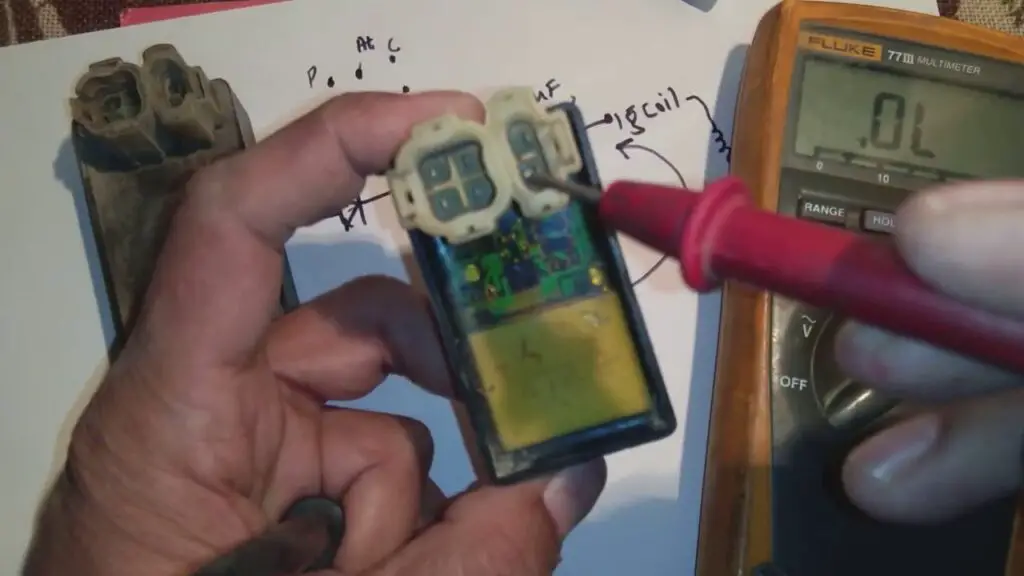

Check the ATV CDI box by measuring the resistance between its terminals with an ohms-set multimeter. The manufacturer’s specifications, which may be found in ATV’s service manual, should be met by the resistance.

Check the ATV CDI box continuity

Check the continuity between the terminals on the CDI box by switching the multimeter to continuity mode. By the service manual’s specifications, there must be continuity between particular terminals.

Connect the CDI box to an ignition coil and a spark plug to check the output voltage. Check the output voltage from the CDI box when the engine is running using a multimeter set to AC voltage. The voltage must comply with the manufacturer’s requirements.

Look for indicators of damage or short circuits in the CDI box, such as burned or melted wires or components, and check for them.
It’s crucial to keep in mind that testing a CDI box needs some technical skill and that ineffective testing might cause additional harm to ATV’s electrical system.

Image credit: activegaliano

What are the symptoms of a bad CDI on a ATV?

A poor CDI (Capacitor Discharge Ignition box) on an ATV can result in several symptoms that can impair the performance and dependability of the engine. On an ATV, the following are some typical signs of a poor CDI box:
Complete loss of spark is among the most prevalent signs of a poor CDI box.

The spark that ignites the fuel mixture in the engine is produced by the CDI box.

Weak or irregular spark: A flawed or faulty CDI box might also result in a weak or irregular spark plug. This may lead to misfires, poor engine performance, and trouble starting the engine.

Misfires in the engine: A broken or faulty CDI box can make the engine misfire or operate erratically when you bypass a CDI box and have the same symptoms as getting the air and fuel mixture wrong.

Poor fuel economy: A malfunctioning CDI module or CDI box can make the engine run inefficiently when you bypass a CDI box, which has the effect of reducing fuel efficiency.

Engine overheating: A damaged CDI box or CDI module, and if you run orange wire not to its right place, it will cause engine overheating.
In addition, the CDI box amplifies the small signals produced by a spinning magnet located before TDC, igniting the fuel mixture powering, which over time can harm the engine.

It’s crucial to have your ATV examined by a qualified mechanic before you bypass a CDI box and if you see any of these signs.

If a malfunctioning CDI box isn’t fixed and there is no bullet connector, it can seriously harm your engine, so it’s recommended to get it fixed or replaced right away.

Image credit: remgazavto

Conclusion

It is not advised to remove the CDI box on a Chinese ATV. It’s best to have any problems with the CDI box examined, fixed, or replaced by a qualified mechanic to guarantee the ATV’s dependability and performance.
